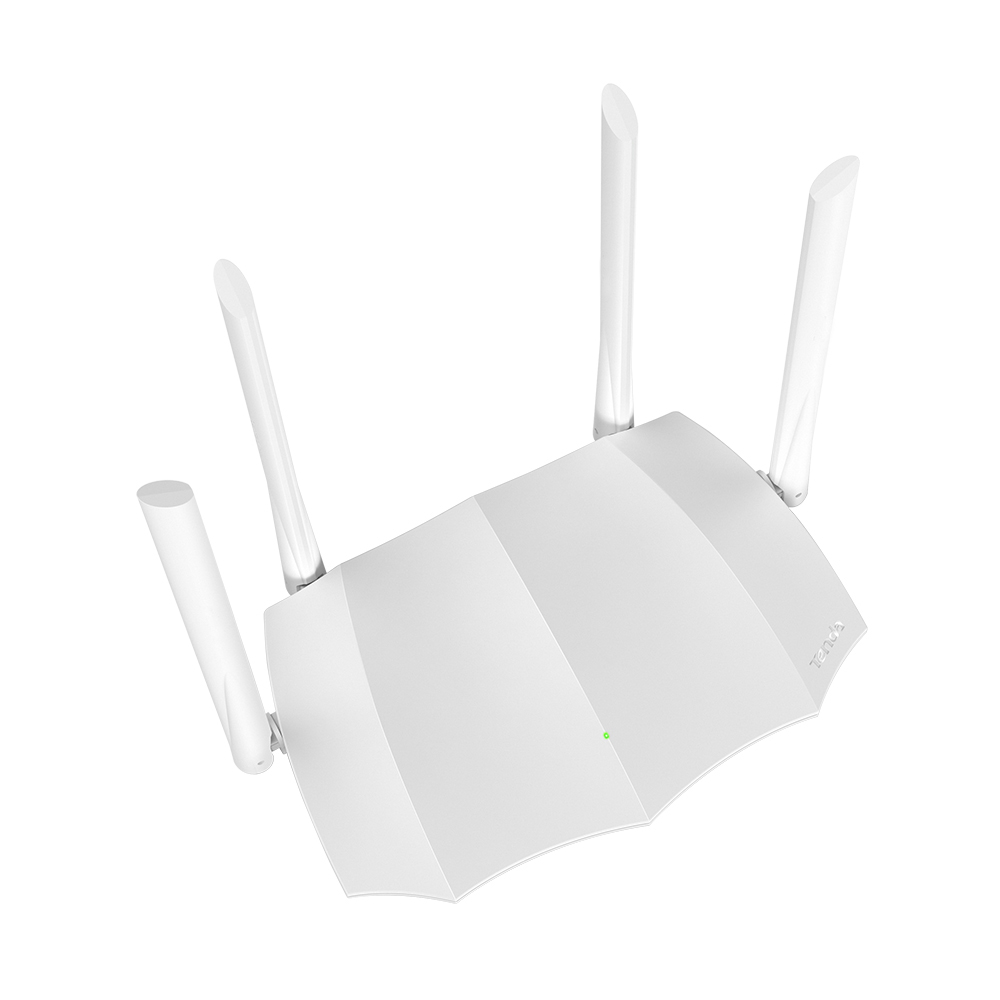

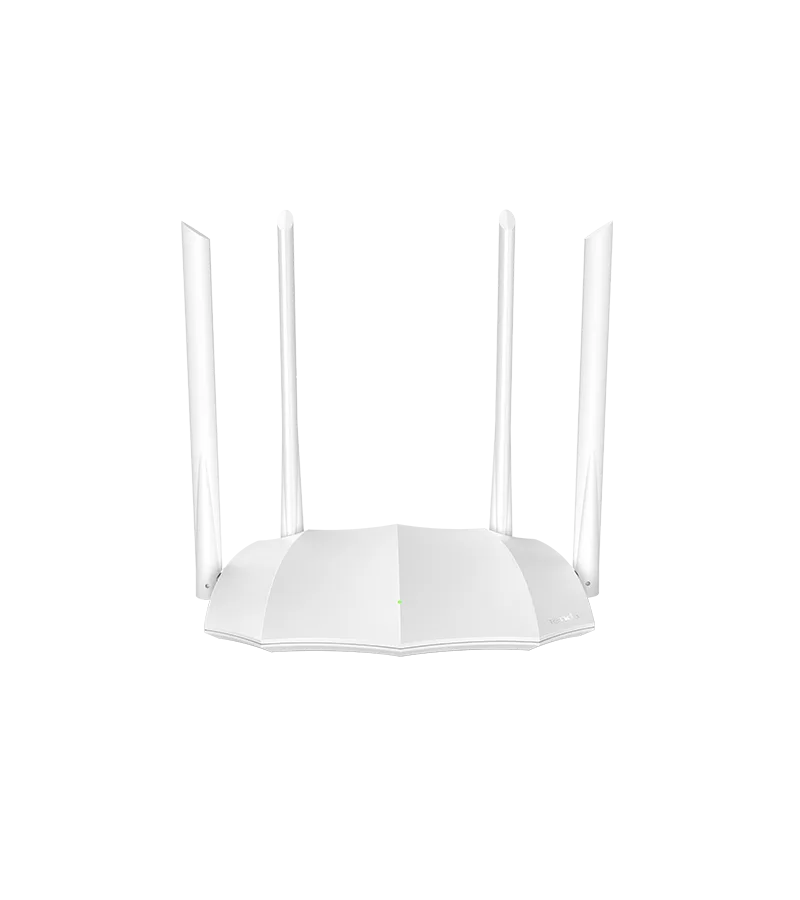

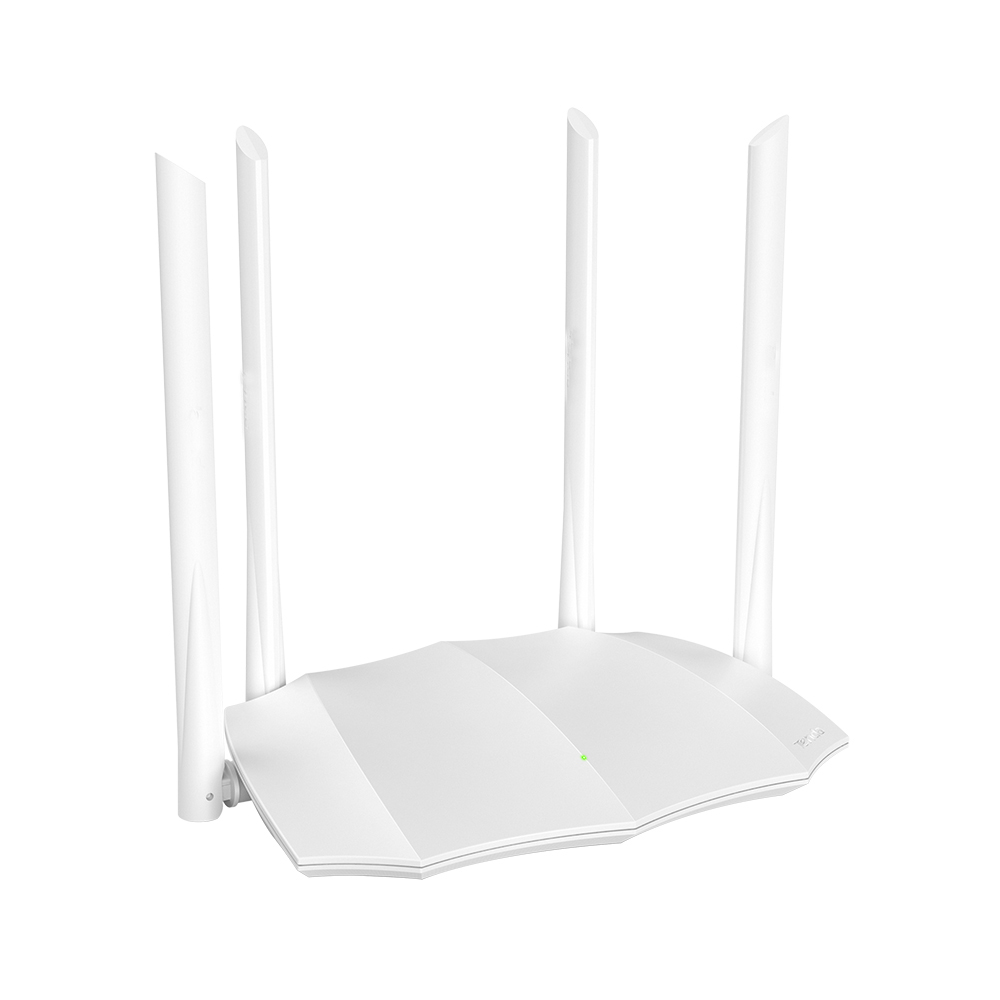

Tenda AC5 v3.0

Router

₹2499.00₹1899.00

AC1200 Dual Band WiFi Router

MU-MIMO，IPv6，VPN，App Managementt
Max. No. of Connected Devices: 30-40
Interface: 4*100Mbps Ports
Antenna: 4*6dBi
Wi-Fi5，2.4G: 300Mbps，5G:867Mbps

AC5 is an AC1200 dual band WiFi router, designed for medium-sized apartment with a 100Mbps fiber access. It provides WiFi speed up to 1167 Mbps (5GHz: 867Mbps and 2.4GHz: 300Mbps). Adopted the integrated dual-band technology, combining 2.4GHz and 5GHz signals under one WiFi name. The faster band would be allocated to your devices automatically by our dynamic optimization system. Meanwhile, featured with 4*6dBi high-gain antennas and equipped with a 28nm high performance CPU, it brings a better internet experience. AC5 supports IPv6 protocol, it can reduce the data transmission time and minimize the lag. Furthermore, the remote management function by the Tenda WiFi App provides the easiest way to manage AC5.

Hardware
Standard&Protocol
IEEE802.3, IEEE802.3u
CPU
1GHz
RAM
32MB

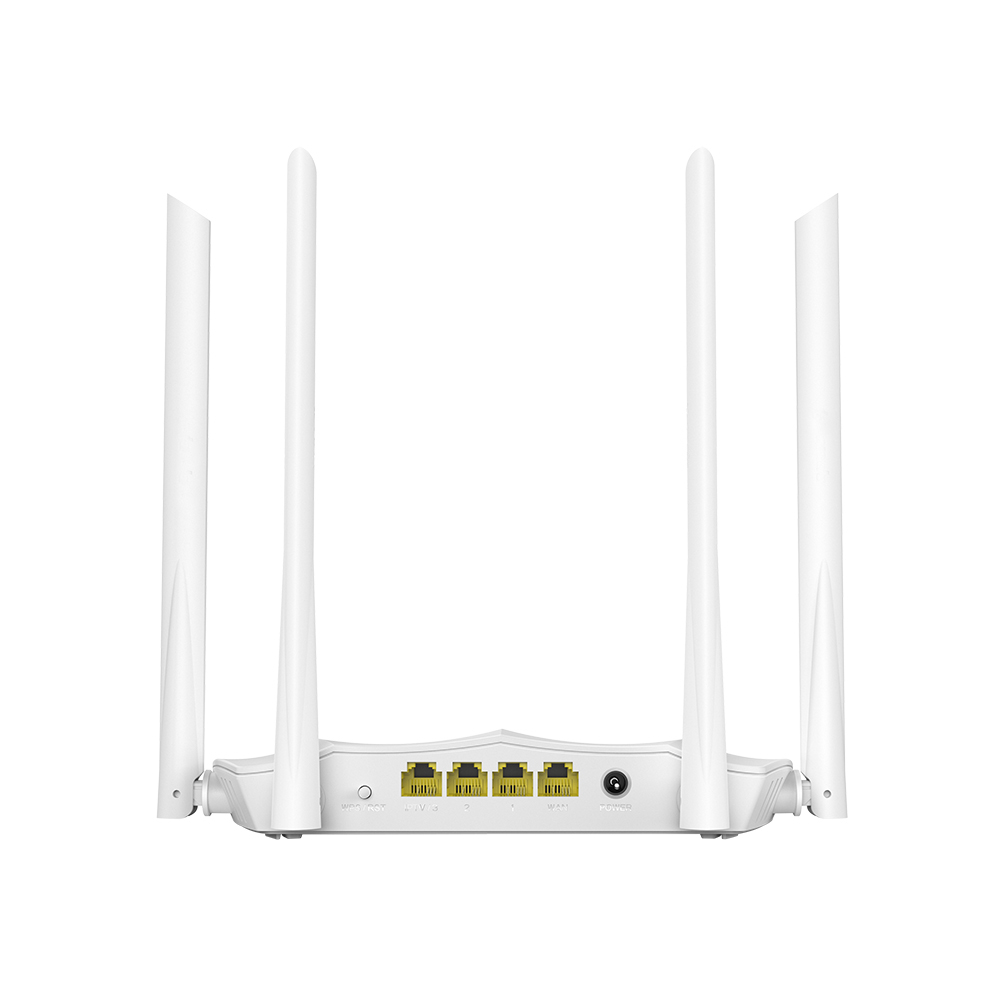

Interfaces
1*10/100Mbps WAN port
3*10/100Mbps LAN ports
Antenna
4*6dBi external antennas
Button
1* Wi-Fi / Reset button
Power
Input：100-240V—50/60Hz 0.4A
Output：DC 9V1A
LED Indicator
Sys*1
Dimension
200*127*33.6mm
Wireless
Wireless Standard
IEEE 802.11ac/a/n @5GHz
IEEE 802.11b/g/n @2.4GHz
Data Rate
5.7GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps
Frequency
2.4G: 2412-2472MHz(CH1-CH13)
5.7G: 5725-5825MHz(CH149-CH165)
Transmission Power
CE:
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
FCC:
<30 dBm (2.4 GHz)
<30 dBm (5 GHz)
Wireless Security
WPA2-PSK
Wireless Security : Enable /Disable
Software
Internet Connection Type
PPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia)
Unify,Maxis,Maxis-special,Celcom,Digi
Network Protocol
IPv4&IPv6
Operating Mode
Router Mode
AP Mode
Universal Repeater Mode（Client+AP,WISP）
Parental Control
Client Filter
URL Filter
Time Limit
DHCP
DHCP Server
DHCP Client List
DHCP Static IP Address Reservation and Allocation
Virtual Server
Port Forwarding, DMZ Host, UPnP
Firewall
ICMP Flood Attack Defense
TCP Flood Attack Defense
UDP Flood Attack Defense
Block Ping From WAN
DDNS
DynDNS, no-ip, oray, 88ip
VPN
IPsec pass through
PPTP pass through
L2TP pass through
Special Features
Guest Network
IPTV
Signal Adjustment
Basic Functions
PPPoE Username/password Clone
Smart WiFi Schedule
Smart Power Saving
Smart LED on/off
Tenda App
Dual-band in One
IPv6 Features Supported
Broadband management
MAC address clone
Backup & Restore configurations
Firmware upgrade from local
Others
Temperature
Operating Temperature : 0℃~40℃
Storage Temperature : -40C ~70℃
Humidity
Operating Humidity : 10 %~90% RH non-condensing
Storage Humidity : 5 %~ 90%RH non-condensing
Certification
CE, FCC,RoHS
Package Contents
Wi-Fi Router 1
RJ45 Ethernet Cable1
Power Adapter*1
Quick Installation Guide*1
